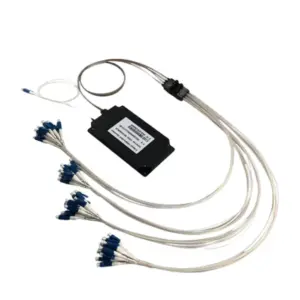

AWG Module

What is AWG Module

AWG Module (Arbitrary Waveform Generator) is an optical device used for optical fiber communications. It can generate optical signals of any wavelength and is widely used in the field of wavelength management and testing of optical fiber communication systems.

AWG Module Function Overview:

  • Precise wavelength generation: capable of generating optical signals of any wavelength (including fixed wavelength and adjustable wavelength).
  • High wavelength accuracy: The wavelength accuracy can reach pm level, meeting the needs of high-precision optical communication systems.
  • High signal-to-noise ratio: The output optical signal has a high signal-to-noise ratio, ensuring the quality of the optical signal.

AWG Module Application Overview:

  • Wavelength modulation of optical fiber communication system: used to generate modulated optical signals to achieve wavelength encoding and decoding of optical communication systems.
  • Wavelength measurement of optical fiber communication system: used to measure the wavelength of optical signals to ensure the wavelength accuracy of the optical communication system.
  • Spectral analysis of optical fiber communication systems: used to analyze the spectral characteristics of optical signals and evaluate the performance of optical communication systems.
Working Hours
Come visit us today!
8:00AM - 6:00PM
8:00AM - 6:00PM
8:00AM - 6:00PM
8:00AM - 6:00PM
8:00AM - 6:00PM


How does an AWG module work?

An AWG module works based on the principle of interference in waveguides. It consists of an input waveguide, an array of waveguides with different lengths, and an output waveguide. When multiple wavelengths of light enter the input waveguide, they propagate through the array of waveguides. Due to the difference in waveguide lengths, each wavelength experiences a different path length, resulting in a phase delay. This phase delay causes the wavelengths to interfere constructively or destructively at the output waveguide, effectively separating or combining the wavelengths.

What are the advantages of using AWG modules?

Using AWG modules offers several advantages in optical communication systems, including:

  1. Wavelength flexibility: AWG modules can handle a wide range of wavelengths, making them suitable for various applications and transmission systems.
  2. High channel count: AWG modules can support a large number of wavelength channels, typically ranging from 32 to over 100 channels, allowing for high-density wavelength division multiplexing.
  3. Low insertion loss: AWG modules exhibit low insertion loss, minimizing signal degradation during wavelength multiplexing and demultiplexing processes.
  4. Scalability: AWG modules are highly scalable, enabling easy expansion of network capacity by adding or removing wavelength channels as needed.
  5. Compatibility: AWG modules are compatible with different types of fibers and can integrate seamlessly into existing optical networks.
  6. Cost-effectiveness: AWG modules provide a cost-effective solution for wavelength multiplexing and demultiplexing, reducing the need for multiple transceivers and fibers.

What are the applications of AWG modules?

AWG modules find applications in various fields, including:

  1. Dense Wavelength Division Multiplexing (DWDM): AWG modules are commonly used in DWDM systems to combine multiple wavelengths onto a single fiber for long-haul transmission and high-capacity optical networks.
  2. Optical add-drop multiplexing (OADM): AWG modules can be used in OADM systems to selectively add or drop specific wavelengths at intermediate points in the network, allowing for efficient wavelength routing.
  3. Optical cross-connects: AWG modules are employed in optical cross-connects to route and switch wavelengths between different fibers or ports, enabling flexible and dynamic wavelength routing.
  4. Coherent optical systems: AWG modules play a role in coherent optical systems, where they assist in demultiplexing and multiplexing optical channels for advanced modulation formats and signal processing.

What considerations should I keep in mind when selecting an AWG module?

When selecting an AWG module, consider the following factors:

  1. Channel count: Determine the number of wavelength channels required for your application. AWG modules are available with different channel counts, and selecting the appropriate number ensures sufficient capacity for your network.
  2. Channel spacing: Evaluate the channel spacing options provided by the AWG module. The spacing determines the separation between adjacent wavelengths and affects the overall capacity and compatibility with other system components.
  3. Insertion loss: Look for an AWG module with low insertion loss to minimize signal degradation during wavelength multiplexing and demultiplexing. Lower insertion loss ensures better transmission quality.
  4. Polarization dependence: Consider the polarization dependence characteristics of the AWG module. Some modules may exhibit polarization-dependent loss (PDL) or polarization-dependent wavelength shifts. Choose a module with low PDL if polarization sensitivity is a concern.
  5. Operating wavelength range: Ensure that the AWG module supports the wavelength range required for your specific application. Different modules have different operating ranges, and selecting one that aligns with your wavelengths is essential.
  6. Compatibility: Check the compatibility of the AWG module with your existing network infrastructure, including fibers, transceivers, and switches. Ensure that the module’s connector types and transmission protocols align with your network components.
